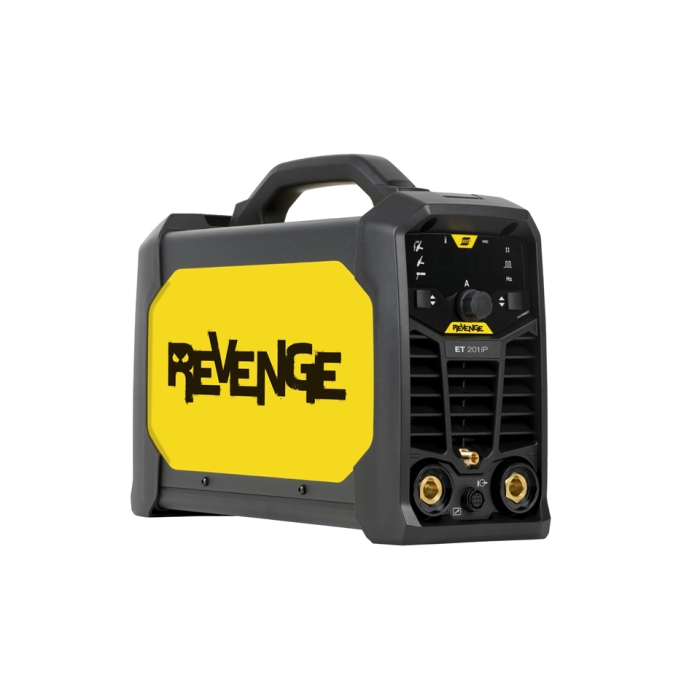

ESAB Revenge ET 201iP Pro 15A TIG Welder
| Brand | ESAB |
|---|---|
| Product Label | ON SALE |
| Weight | 10.000000 |
| Hide Request Quote Form | No |
| Power Supply | 240V |
| Supply Plug | 15 Amp |
| Dimensions | 403 x 153 x 264 mm |
| Duty Cycle | 100 A / 24.0 V @ 100% Duty Cycle |
| Min Amperage | 10 |
| Max Amperage | 200 |
| Protection Class | IP 23S |
ESAB Revenge ET 201iP PRO is a versatile professional inverter welder combining DC HF TIG, DC Lift-TIG and Stick (MMA) welding capabilities in a compact, portable package. Designed for industrial use, it delivers up to 200 A of output power for precise welding on a wide range of metals including mild steel, stainless steel and bronze.
The unit features pulse capability on both TIG and Stick modes, allowing finer control of heat input, reduced spatter and improved weld quality on thinner materials. With dual-voltage input and robust construction, it is suitable for workshop and job site applications.
- Advanced multi-process welding: DC HF TIG, DC Lift-TIG and Stick/MMA
- Pulse TIG frequency range up to 500 Hz for heat control and weld precision
- Pulse Stick frequency up to 100 Hz for improved arc stability
- Dual-voltage input (115/230 V ± 15%, single phase)
- Up to 200 A maximum output power
- Industrial-grade IP23S enclosure for durability
- VRD (<35 V DC) for enhanced safety
- Lightweight and portable (approx. 10 kg)
- Rated kVA: 7 kVA
- 1-year warranty
This welder is ideal for fabrication, maintenance and site work requiring reliable TIG and Stick welding performance with advanced pulse control.
